T Sport Modular Lp6 And S2 Lighting Combo Kit For Dyna Narrow 127111
option1
option2
Get the Ultimate Lighting and Fairing Combo Kit for your Ride!

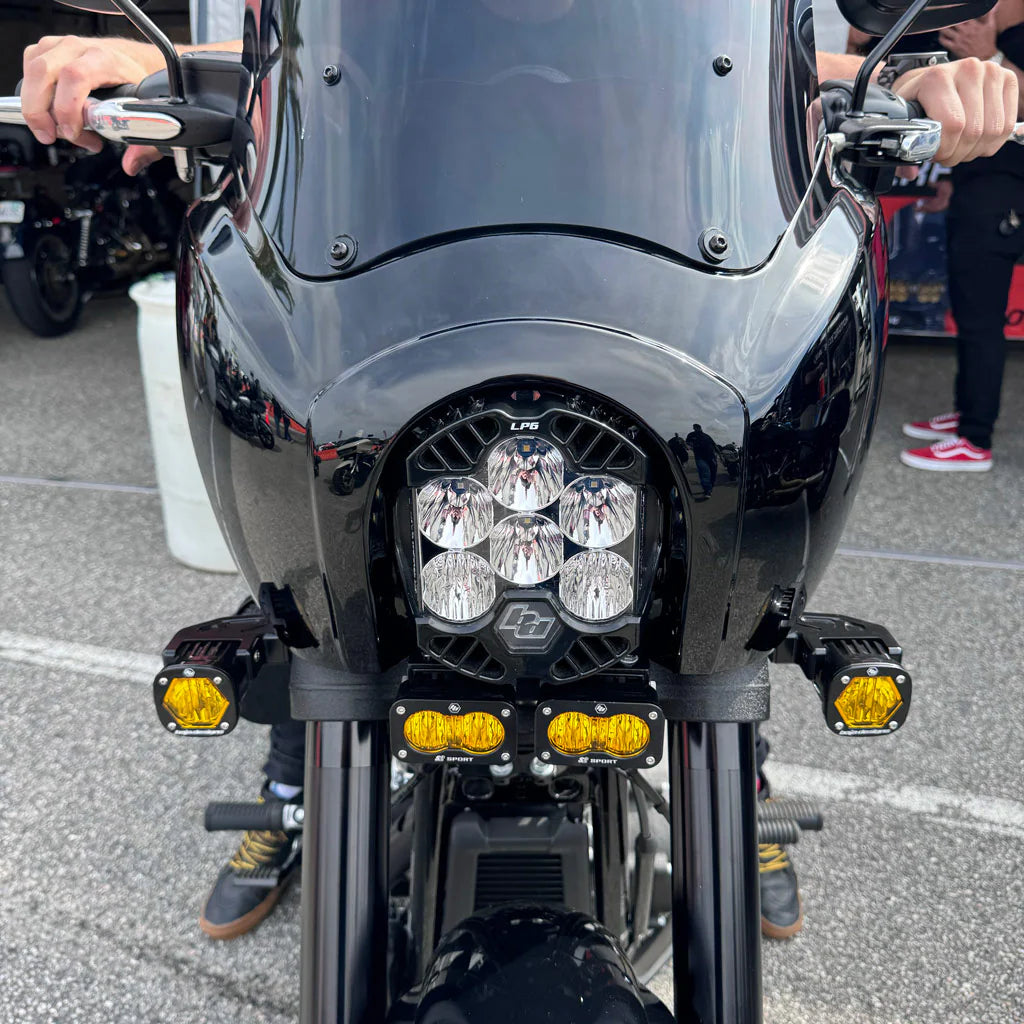

Check out our New Modular Fairing mounting system. One System integrates the LP6, Dual S2 Lights below the Fairing, and Billet Turn Signals as shown below.
The Above Image shows all options in this kit (Sold Separately)
Working in Partnership with AdvanBlack and utilizing their high-quality fairings, We have created an entirely new mounting system made specifically for their T Sport fairing.
What makes this kit so cool? We have integrated the fairing mount, light mount, and optional S2 and Turn Signal mounts all in one system.
Adjust your LP6 Up and Down depending on preference and if you need clearance for S2 lights. Tilt the fairing to your desired angle.
Able to run Billet turn signals using the Baja Designs S1 platform and they are positioned just outside the lower clamp which frees up bar-mounted turn signals to be removed or switch those out with additional S1's as well.
Fitment: Fits the Low Rider, Early Dynas, Softails, Most Any Bike with a 3.5" Tree bolt pattern and 39 mm forks. (Example: Narrow Glide, Standard Low Rider)
Note: (Will not work with add-on Turn Signals Due to tight fitment of the width of forks on side of the main mount)
*Fairing will need to be trimmed/modified for fitment of the LP6.
Designed to work with T-Sport fairings based on original mounting locations. May not be compatible with some fiberglass / carbon fiber fairings.
Confirmed to fit: Advan Black, Krator, OG Moto
Modification Necessary: IMZZ Elite, Conely's, Villain 2 Hero
Simply Put... The Absolute Brightest Light Kit Available for Your Ride!

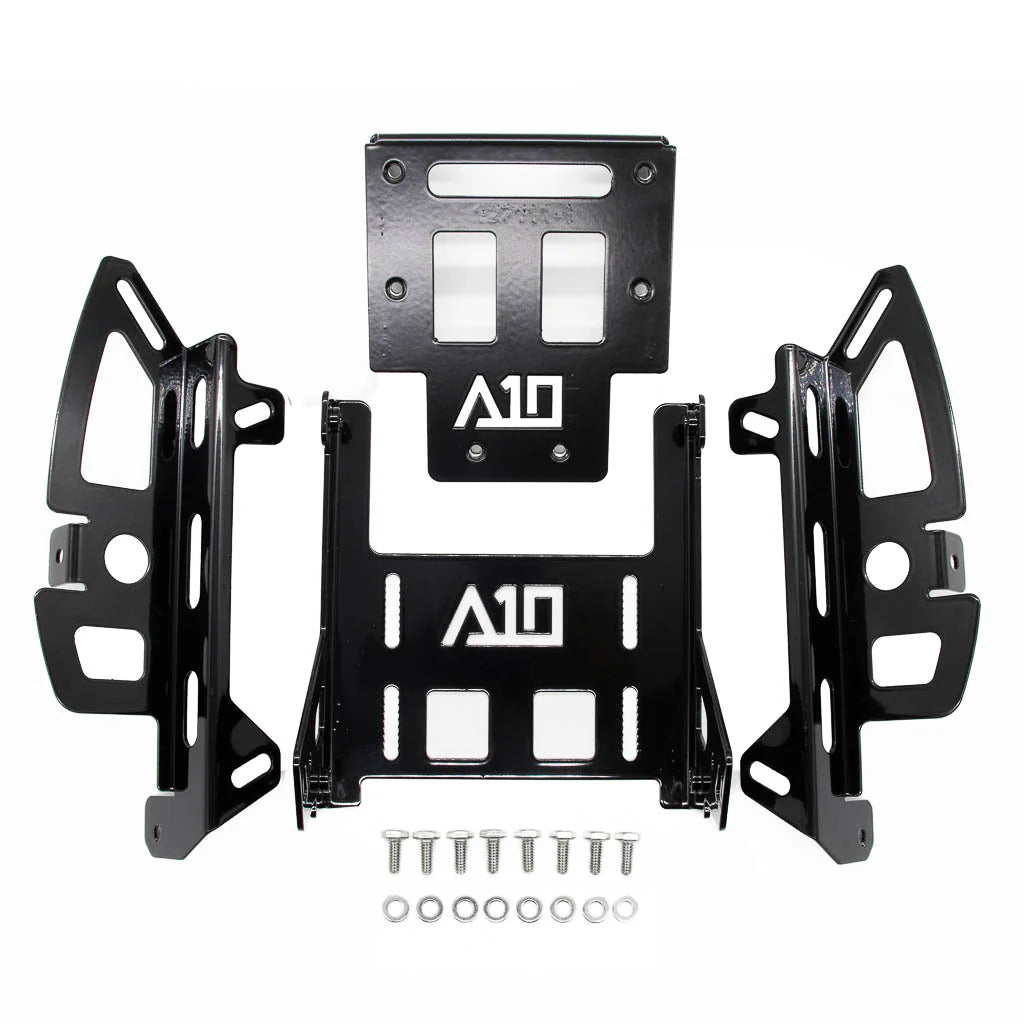

Basic Starter Kit Sku 127095 Kit will come with the following:
-
Fairing Mounting Hardware that adjusts tilt and height.
-
LP6 Light Mount
-
Lower Support bracket
-
Hardware needed for the above components.
Modular Add-On Options:
-
ADD Twin S2 Mounting Kit Below your Fairing "Click Here"
-
Add Brackets that will allow for Billet Turn Signals Mounts and S1 Lights to be used as Fogs ( on all the time,) and Turn Signals. This kit attaches to the Main Bracket which comes inside this 127085 Kit. Check it out! 127097
What’s Included:
| Qty | Bracket Part Number / Description |
| 1 |
127095-1B Coating Main Bracket |
| 1 | 129095-2 Coating Main Mount |
| 1 | 127095-3C Coating Lower Support Bracket |
| 1 | 127095-4C Coating |
| 1 | 127095-5C Coating |
Hardware Included:
| QTY | Hardware Description |
| 2 |
Kits #3002 (8- 1/4x20x.75 bolts and washers) |
| 1 | Kits #3004 (2 - 5/16-24x1.75 bolts, 2- 1/4 Washers , 2- 1/4 nylock nuts) |
| 2 | Black Aluminum spacers .319 ID x 5/8OD x 7/8 length |
| 1 | 3/8x18x1.75 Grade 5 Bolt (dyna lower support) |
| 1 | 3/8x18 Nylock Nut Grade 5 Zinc std. (dyna lower support) |
| 1 | 3/8 Washer SAE std Grade 5 (dyna lower support) |
