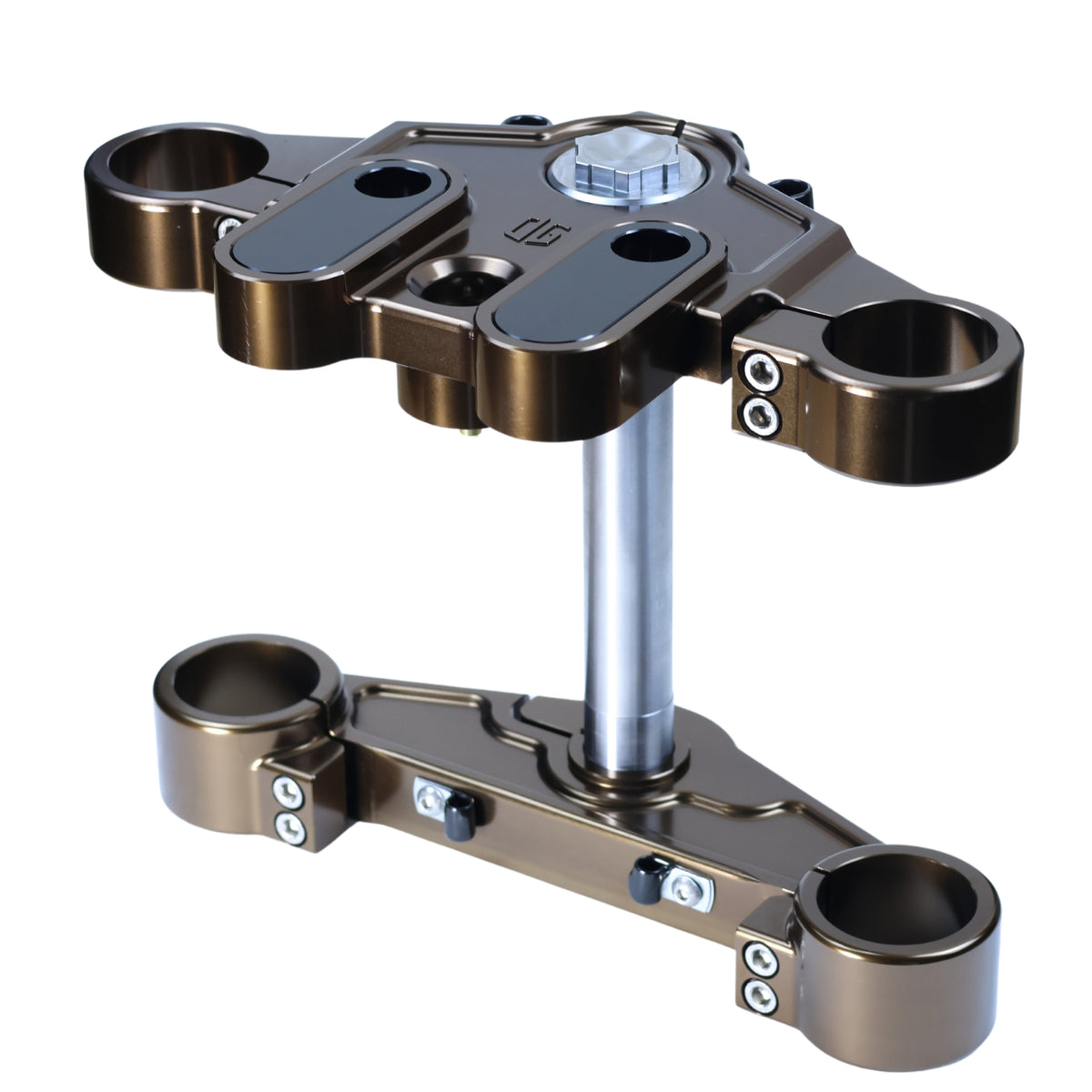

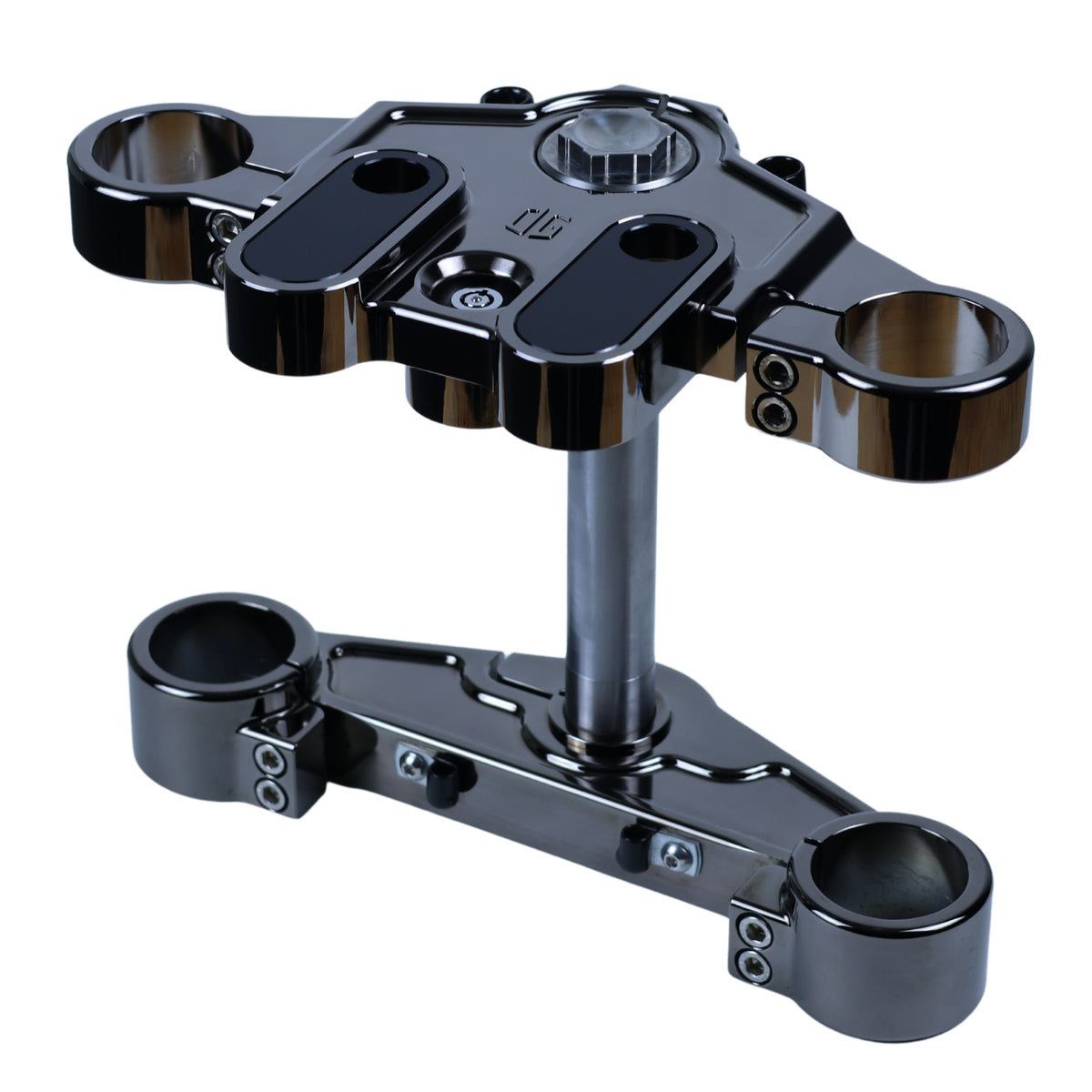

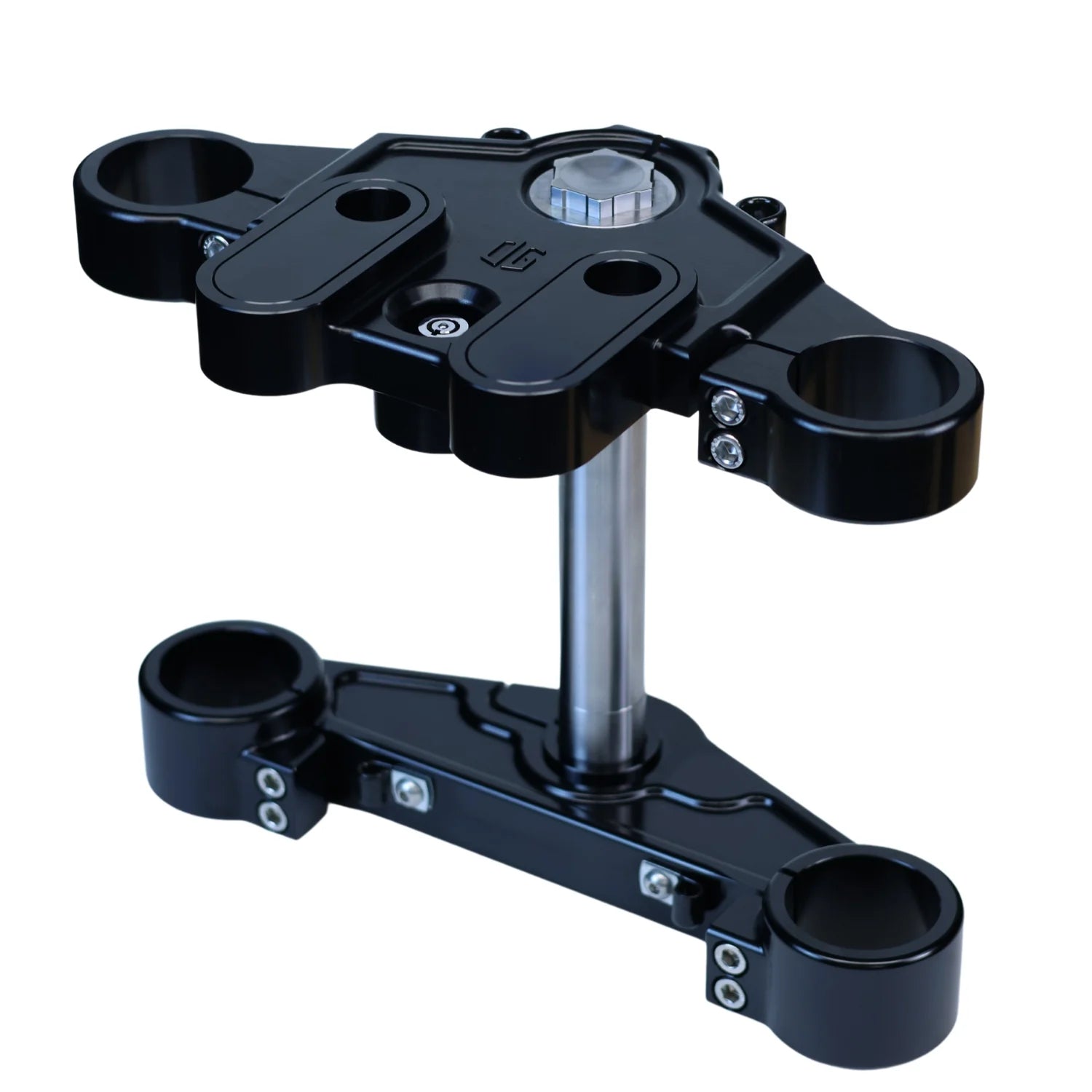

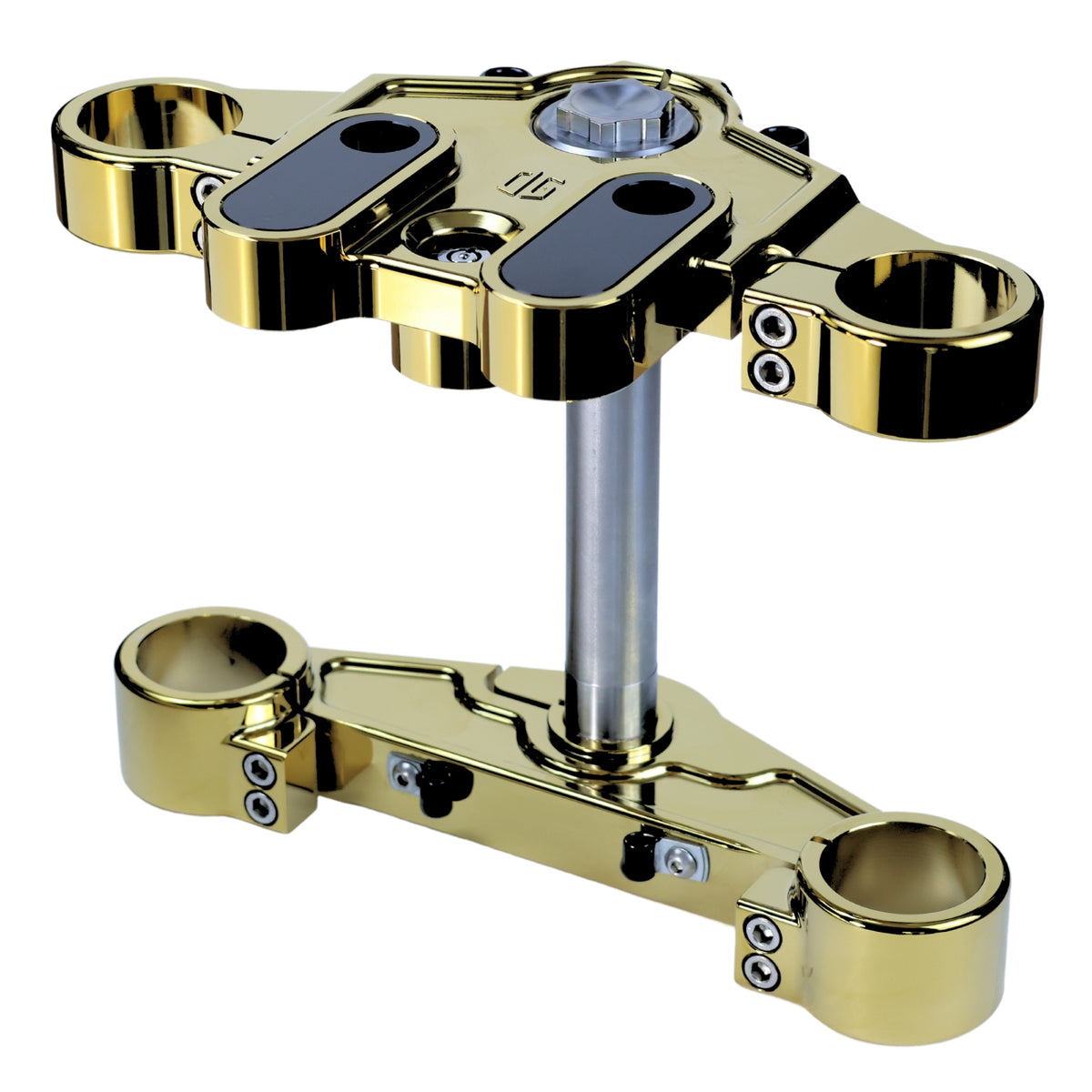

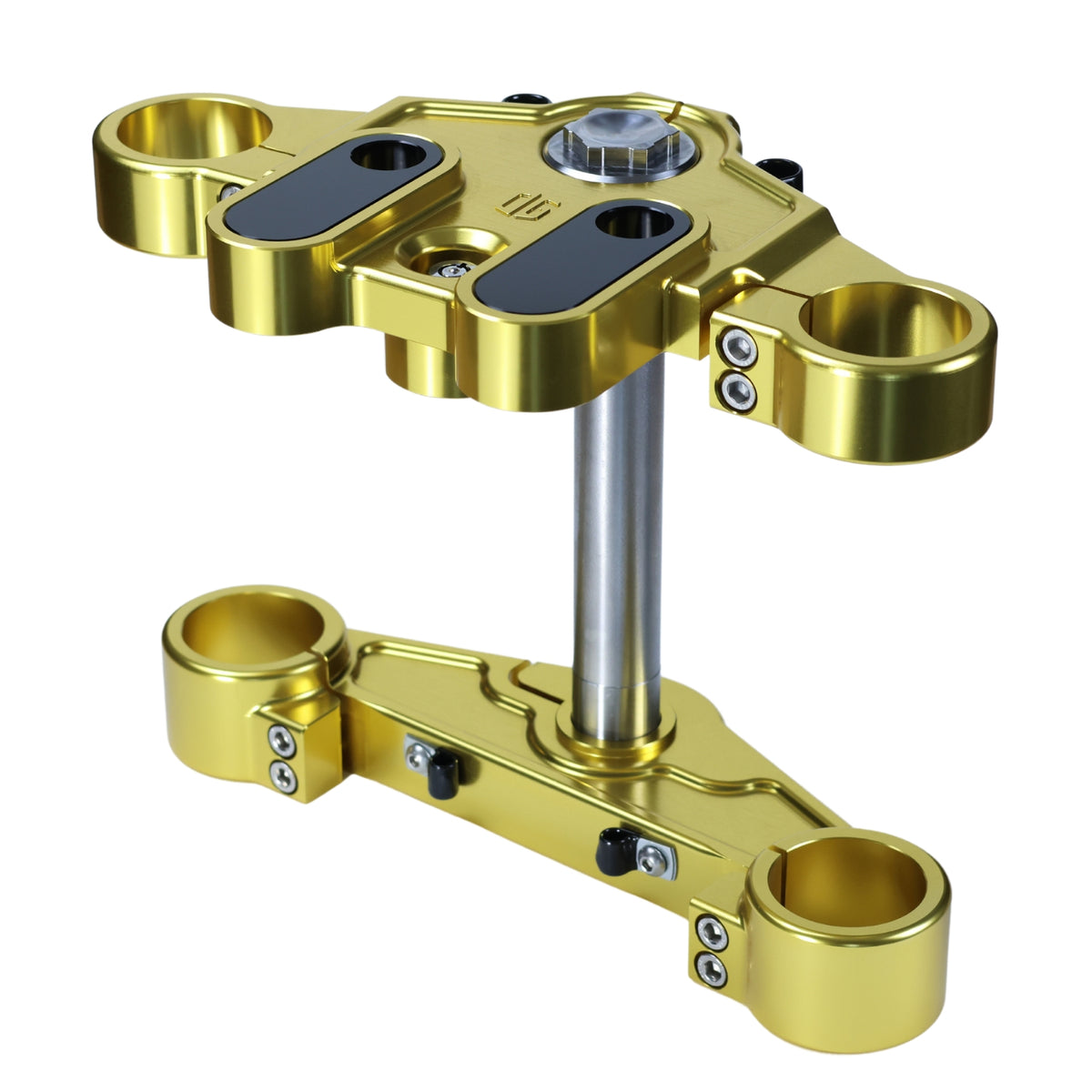

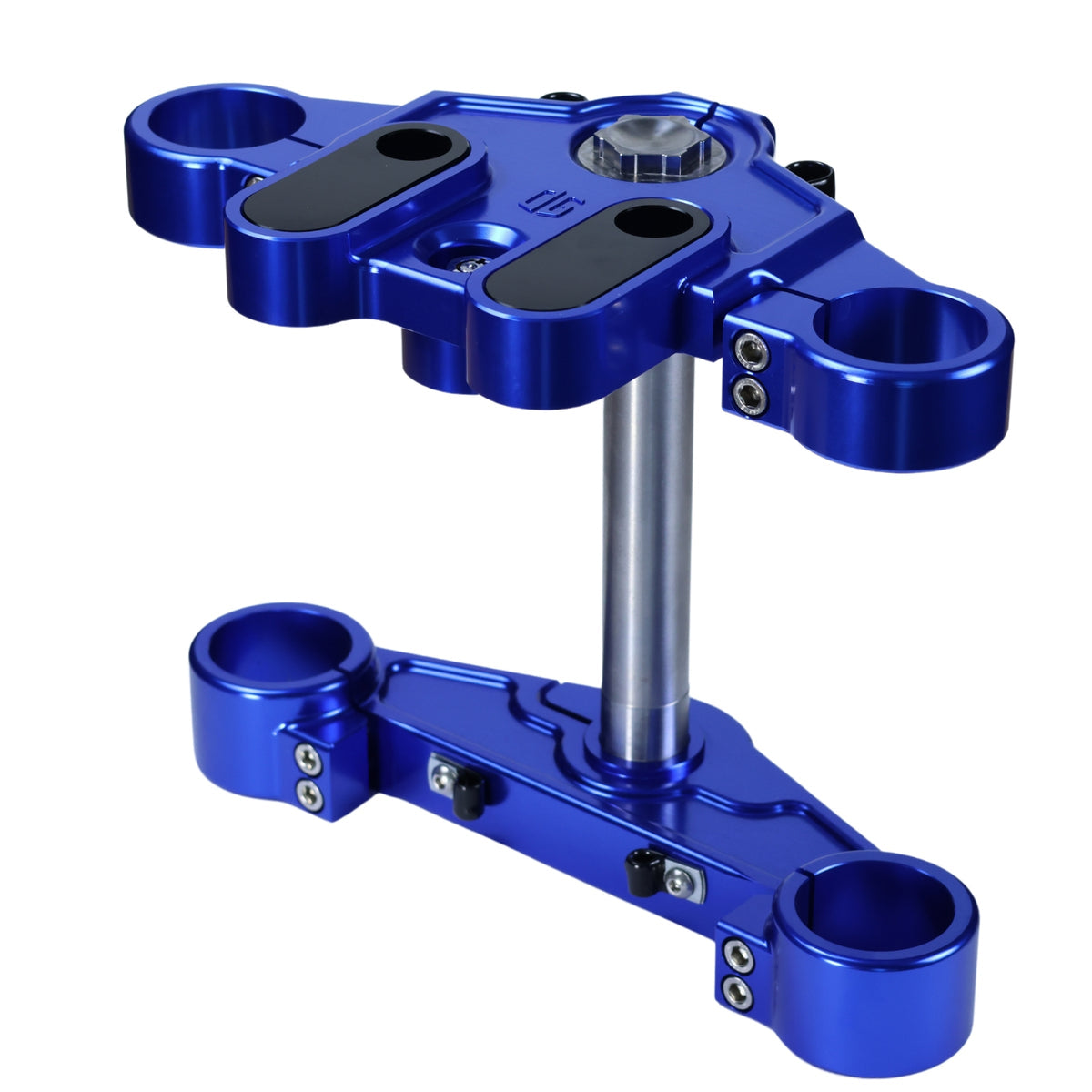

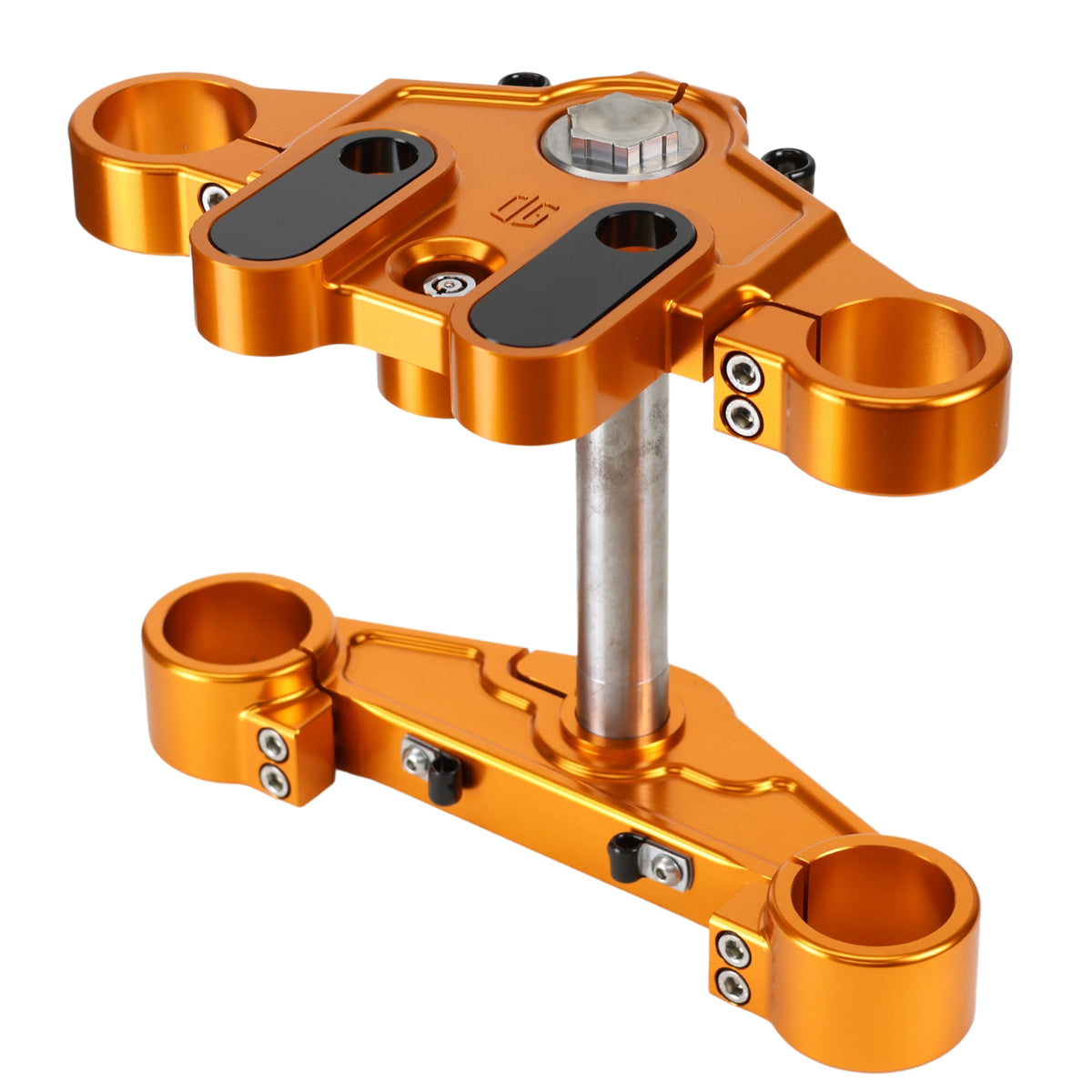

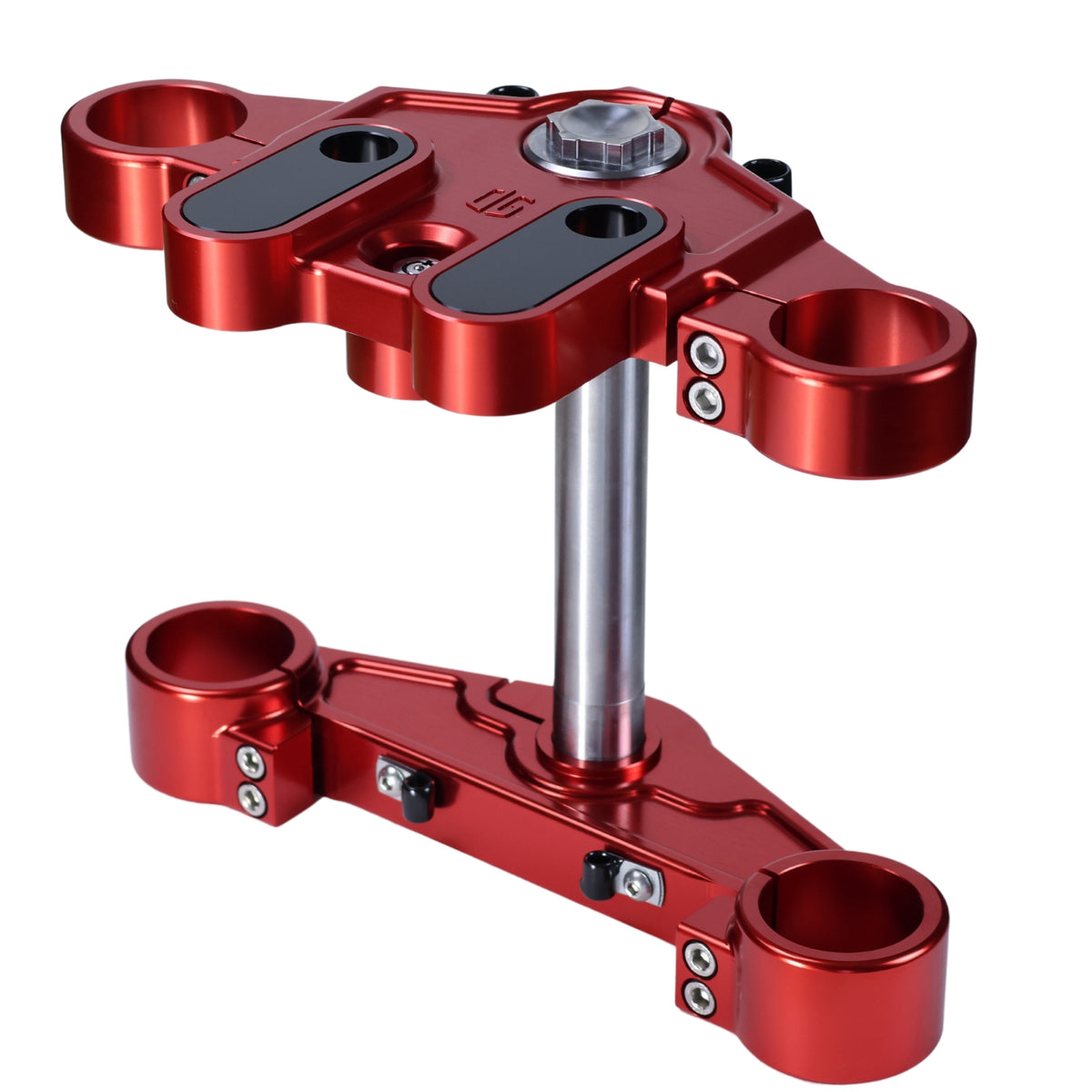

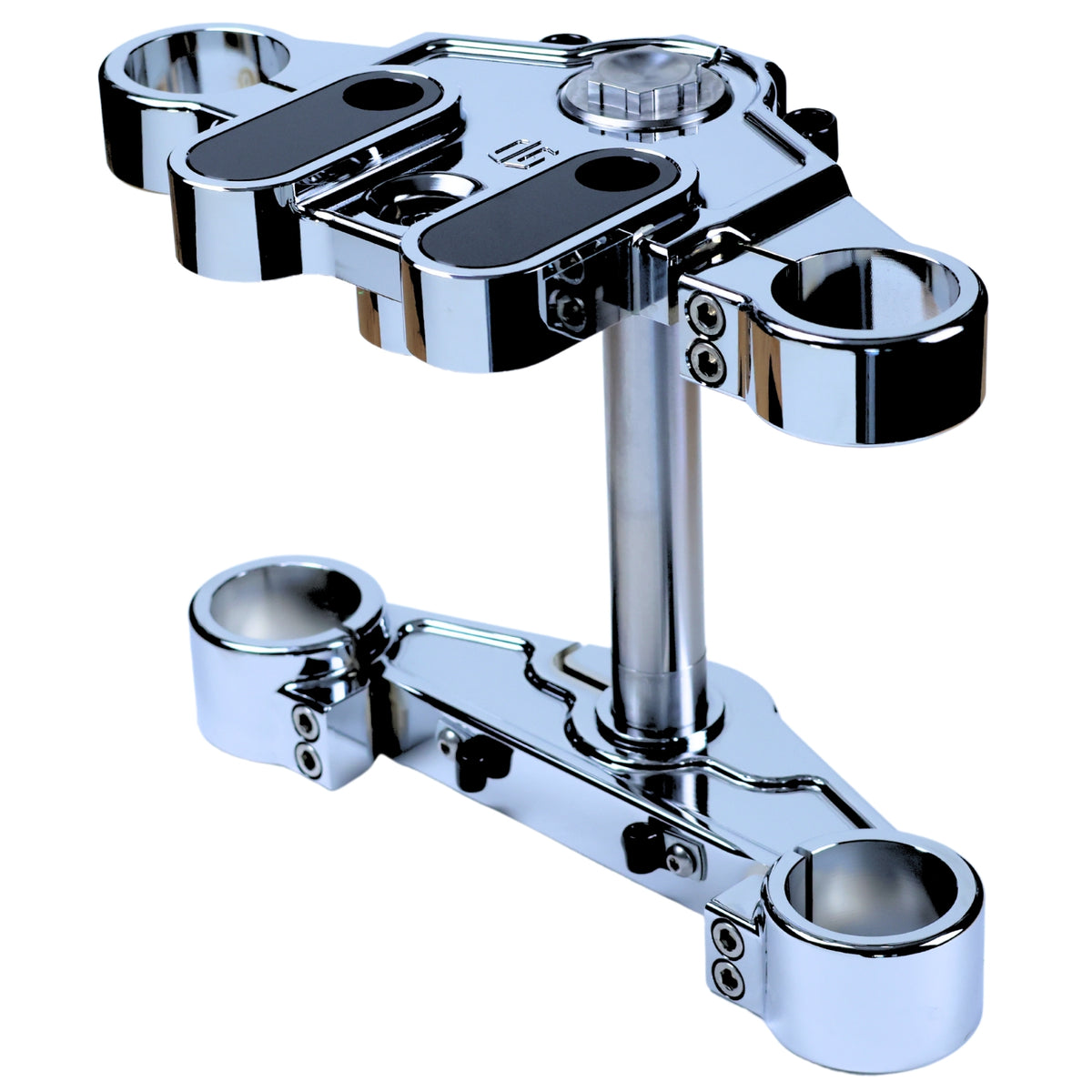

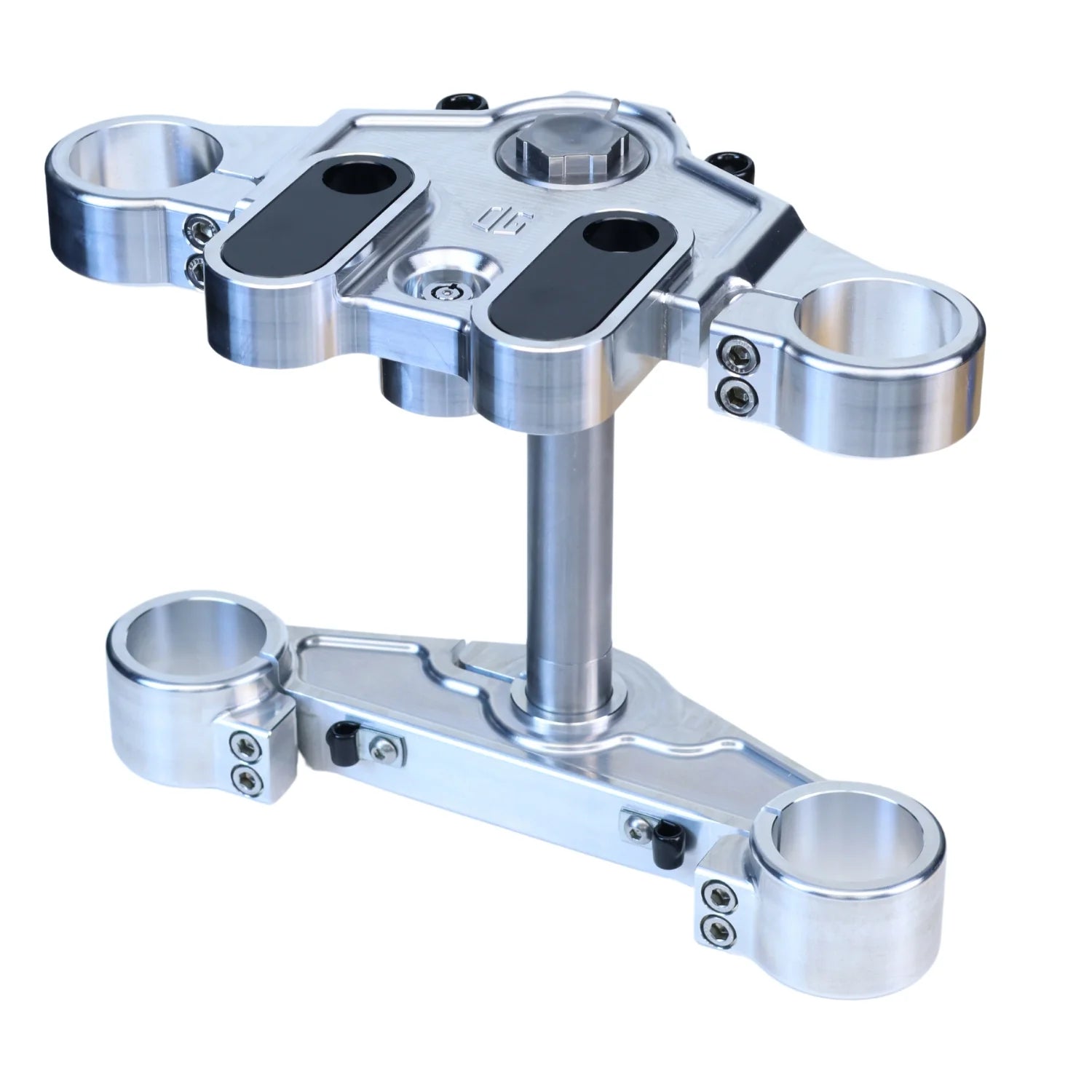

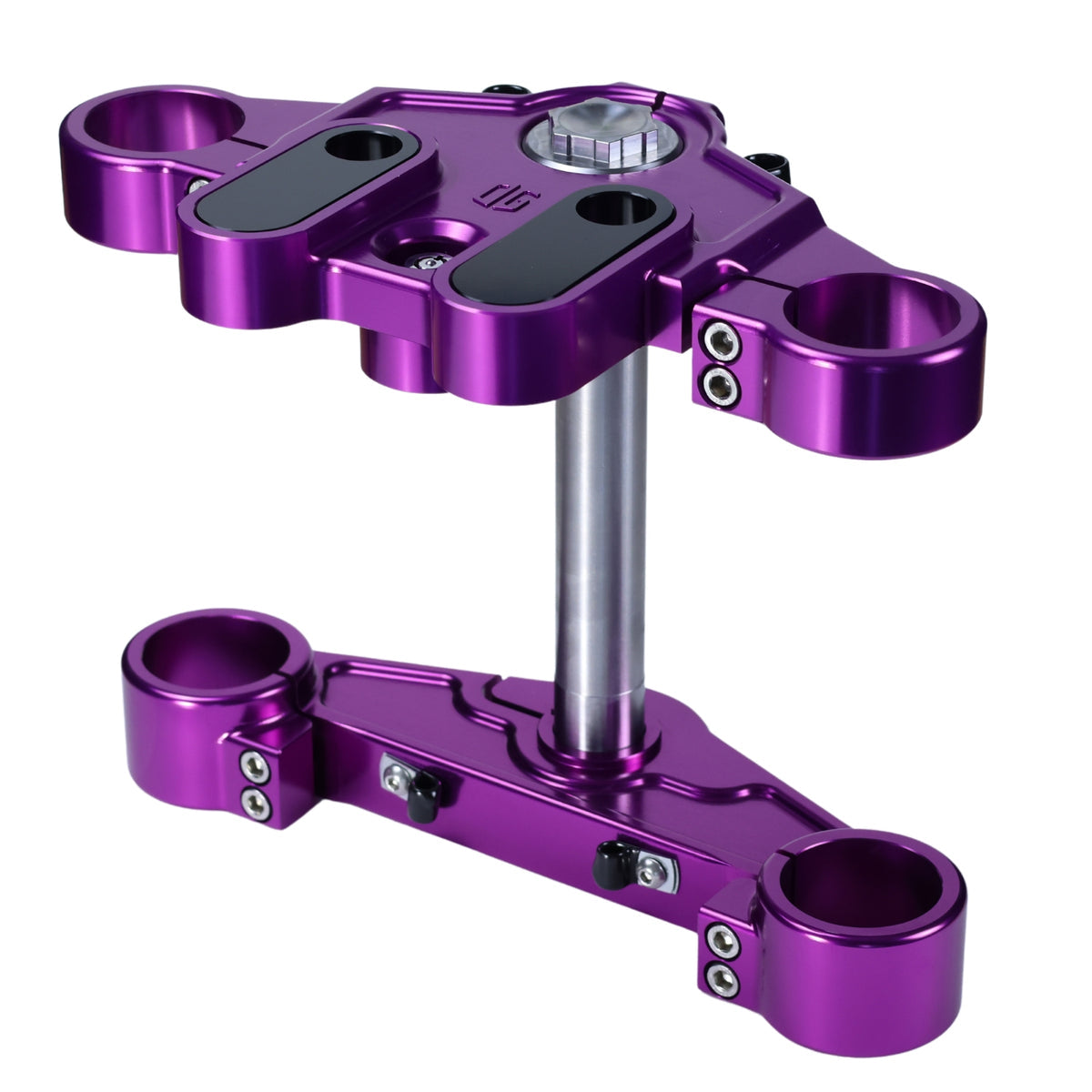

OG Triple Trees kit - 14+ Touring
Our OG 2014-Up Touring Triple Trees kit for Harley-Davidson Touring models is the ultimate performance bagger front-end upgrade. It is engineered to maximize performance & rigidity featuring taller fork tube clamping sections and a thicker cross-section over the stock trees.
It will allow you to set your Risers exactly where you want them with three mounting location options; Stock, +1'' & +2'' pullback towards the rider (+1” Adapters sold separately).
Also features pocketed key lock, wire & brake line(s) management clamps for that clean install and factory look. This premium Top Tree kit will also fit on FL with batwing fairing & Road King models using our Batwing Fairing Clamps (sold separately). Uses standard FL bushings. Available in all colors including chrome finishes.
*2014 to present FL models with batwing fairing will need to run +2'' pullback risers position to clear the navigation screen and stereo.
**For 2014-2023 models. If your bike still has the OEM Ignition switch/Fork lock, you will need to have your bike flashed with the “keyless CVO feature” at your local shop prior to starting the installation.
***Risers bushings are required for this kit and sold separately.
Features :
- Precision CNC machined 6061 T6 aluminum
- Stem axle & nut machined from 4140 Chromoly Steel for superior strength
- Designed to match the OEM rake angle and triple tree offset ensuring a straightforward installation and maximizing performance
- Hard Anodized & Chrome finishes
- Machined OG logo
- Uses standard FL bushings
- Stainless steel hardware included
- Includes two Wire management clamps (one on both sides)
- Includes two brake line(s) management clamps
- Supplied with a lock and key to keep the fork lock feature
- Innovative reversible Risers mounting Block allows three riser positions; stock, +1'' or +2” pullback towards the rider. +1” Adapters are sold separately
Fitment :
- Fits all 2014-2023 with 49mm front-end Touring models
- 2014-2023 FL with batwing fairing & Road King models will need our Batwing Fairing Clamps sold separately (2x kits required)
- Fits 2024 to present Road Glide models with 49mm front-end
- Fits 2024 to present Street Glide models using our OG Batwing Fairing Clamps for 2024-Up Touring Top Triple Tree sold separately (2x kits required)
- Will not fit 2023 CVO models equipped with an inverted front end
*2014 to present FL models with batwing fairing will need to run +2'' pullback risers position to clear the navigation screen and stereo.
**For 2014-2023 models. If your bike still has the OEM Ignition switch/Fork lock, you will need to have your bike flashed with the “keyless CVO feature” at your local shop prior to starting the installation.
