Denali Full Deck Light Kit - 24+ Touring
Crush the Darkness. Command the Road.

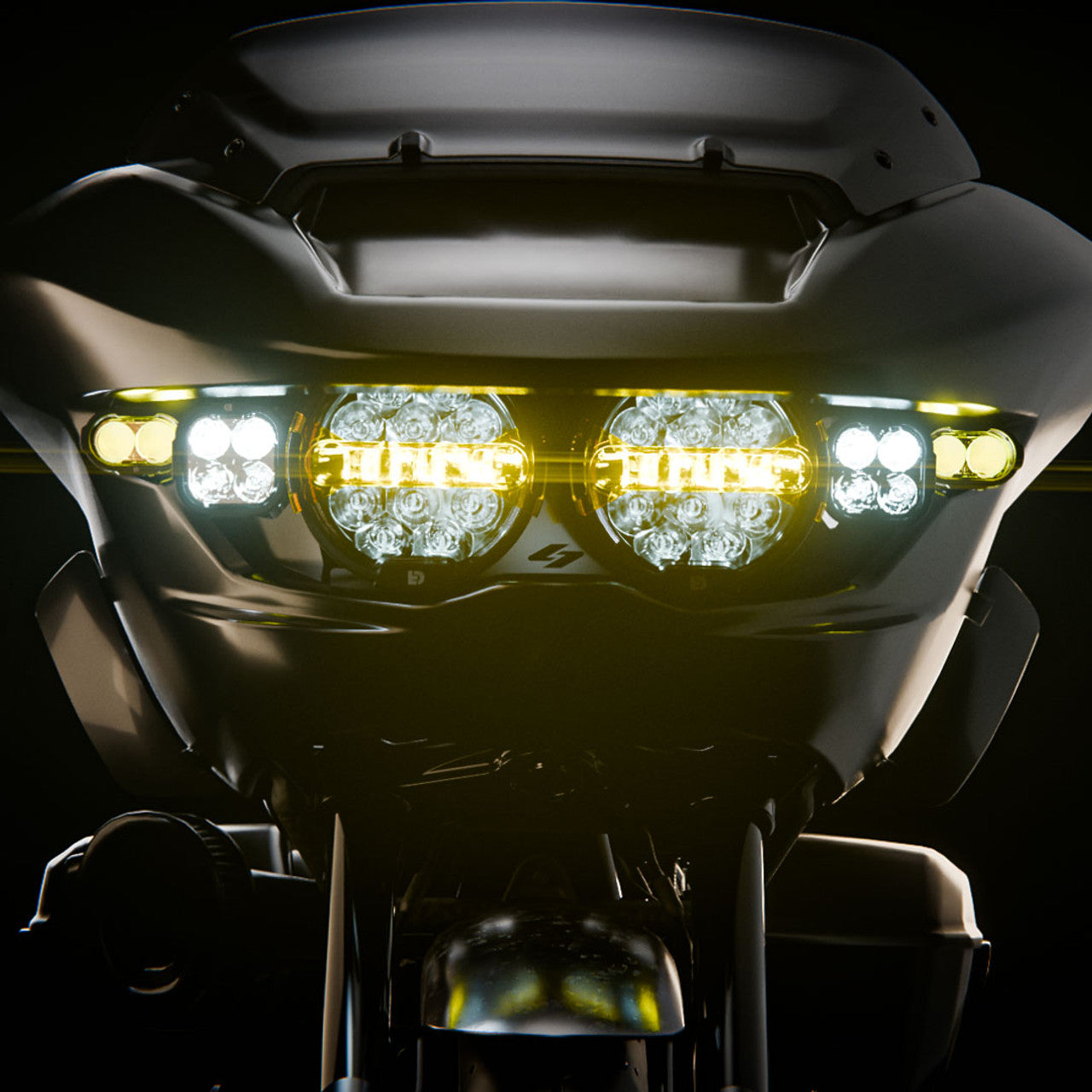

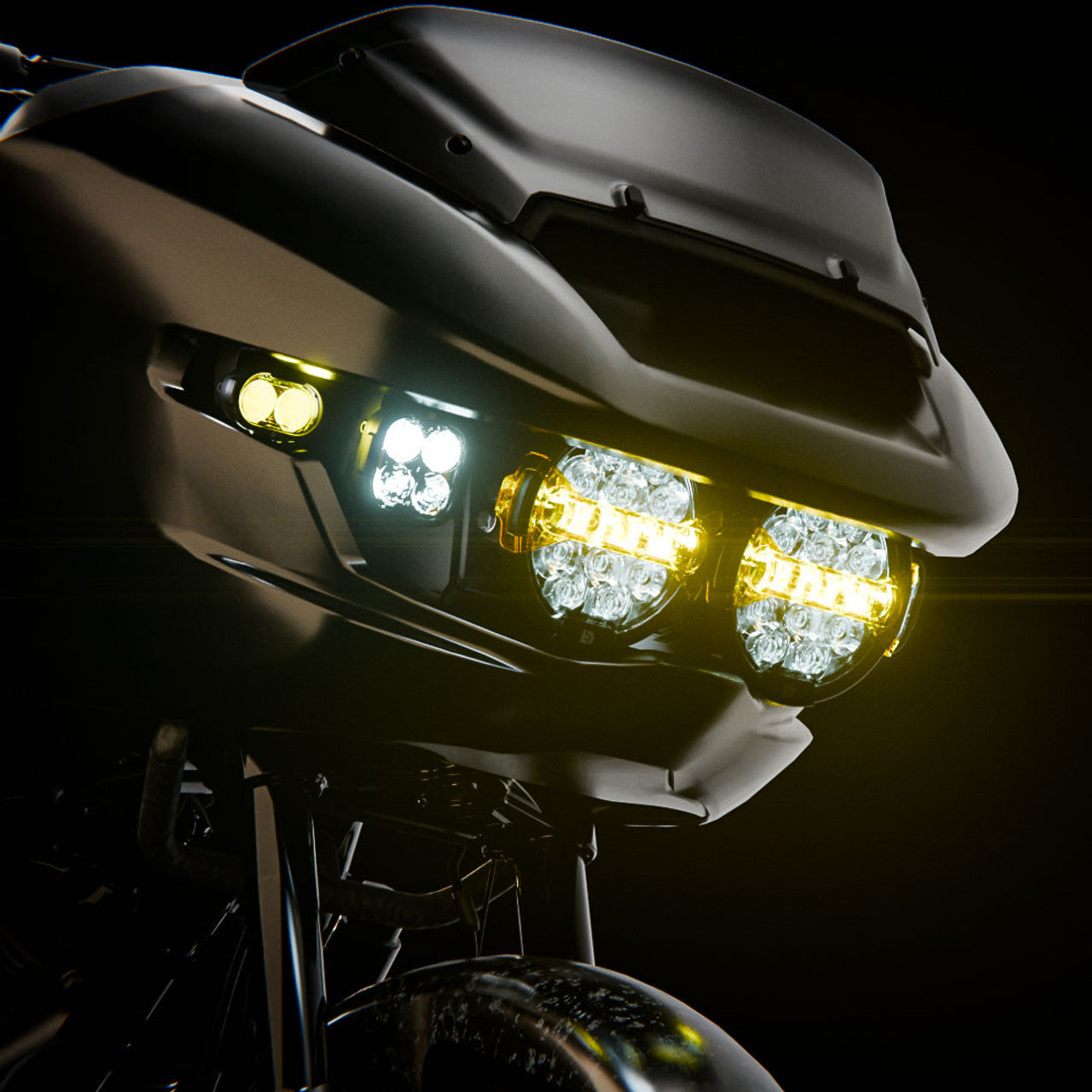

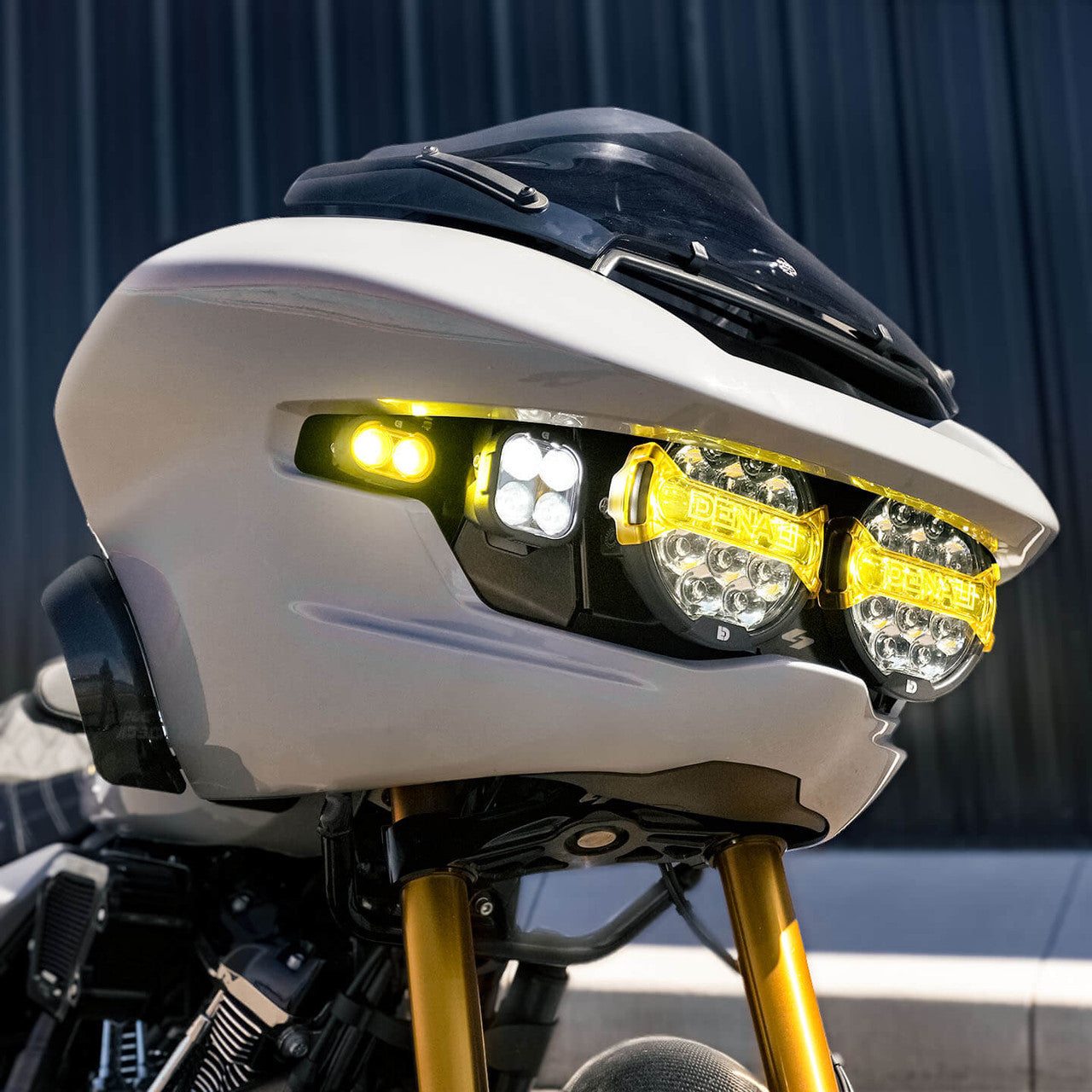

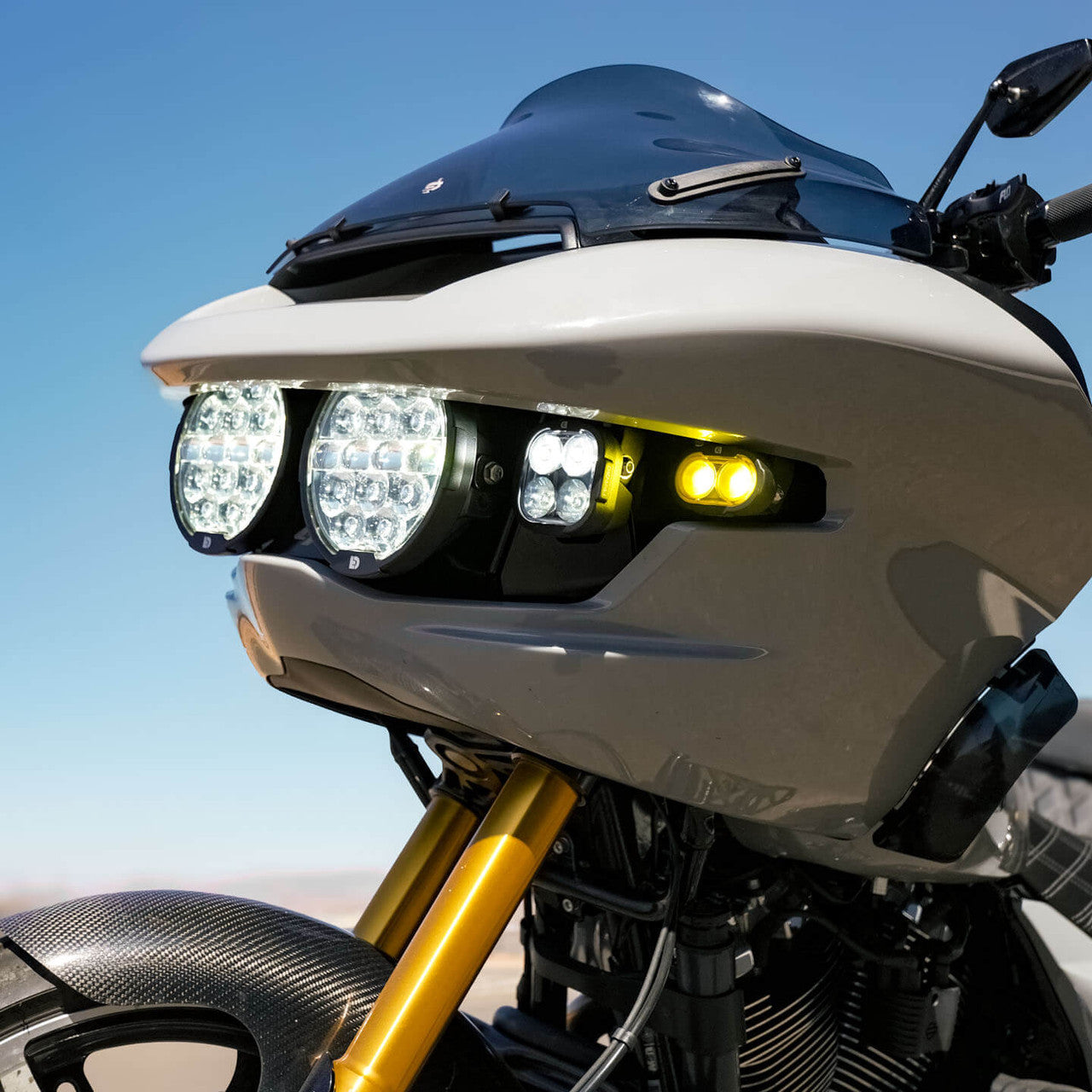

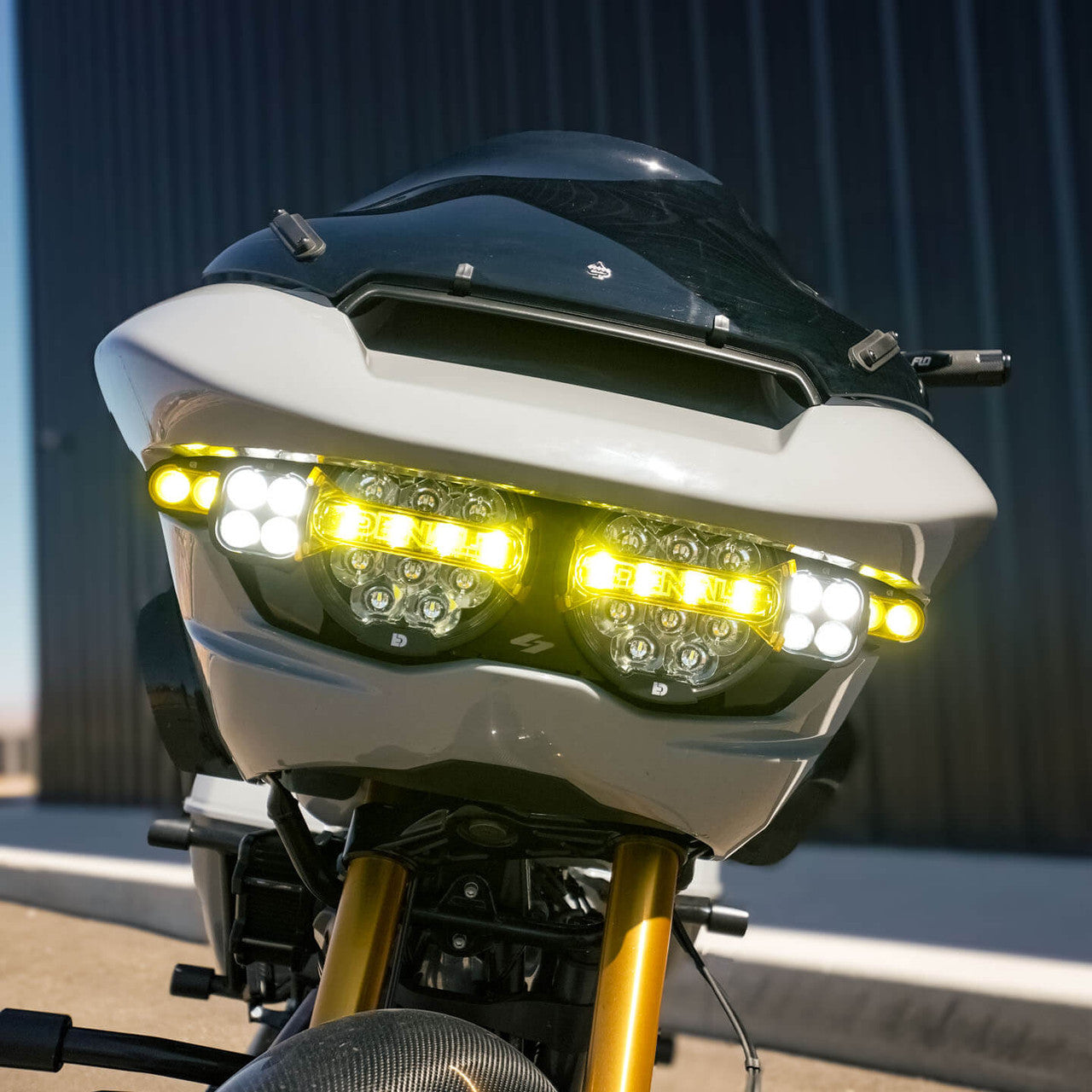

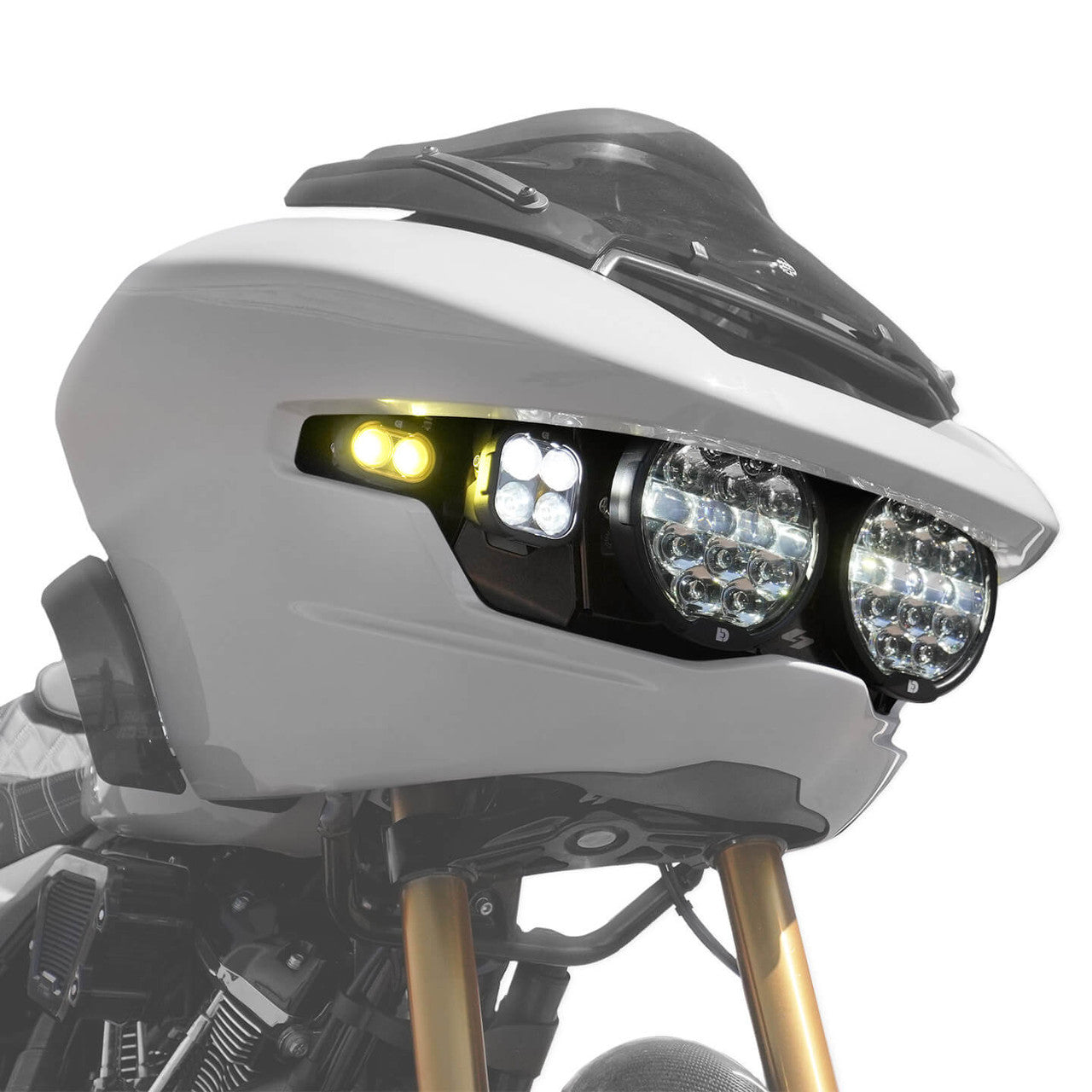

Prepare for total domination—this is not your average headlight upgrade. The Full Deck Light Kit has next-gen LED technology, tactical beam control paired with Kraus Moto’s quality precision mounting bracket. Light up the whole road but also do it with style. This kit includes the main beam from the D14 and DL4 lights with the turn signals coming from the yellow colored DL2’s.
This is the brightest, most feature-rich, and street-legal lighting system ever engineered for your Harley-Davidson Road Glide.
Features:
- Complete Plug-&-Play Headlight Upgrade Kit
- Over 36,000 total lumens
- Dual High Beam Design (DOT high beam OR Destroyer high beam)
- DOT/SAE & ECE street-legal high/low

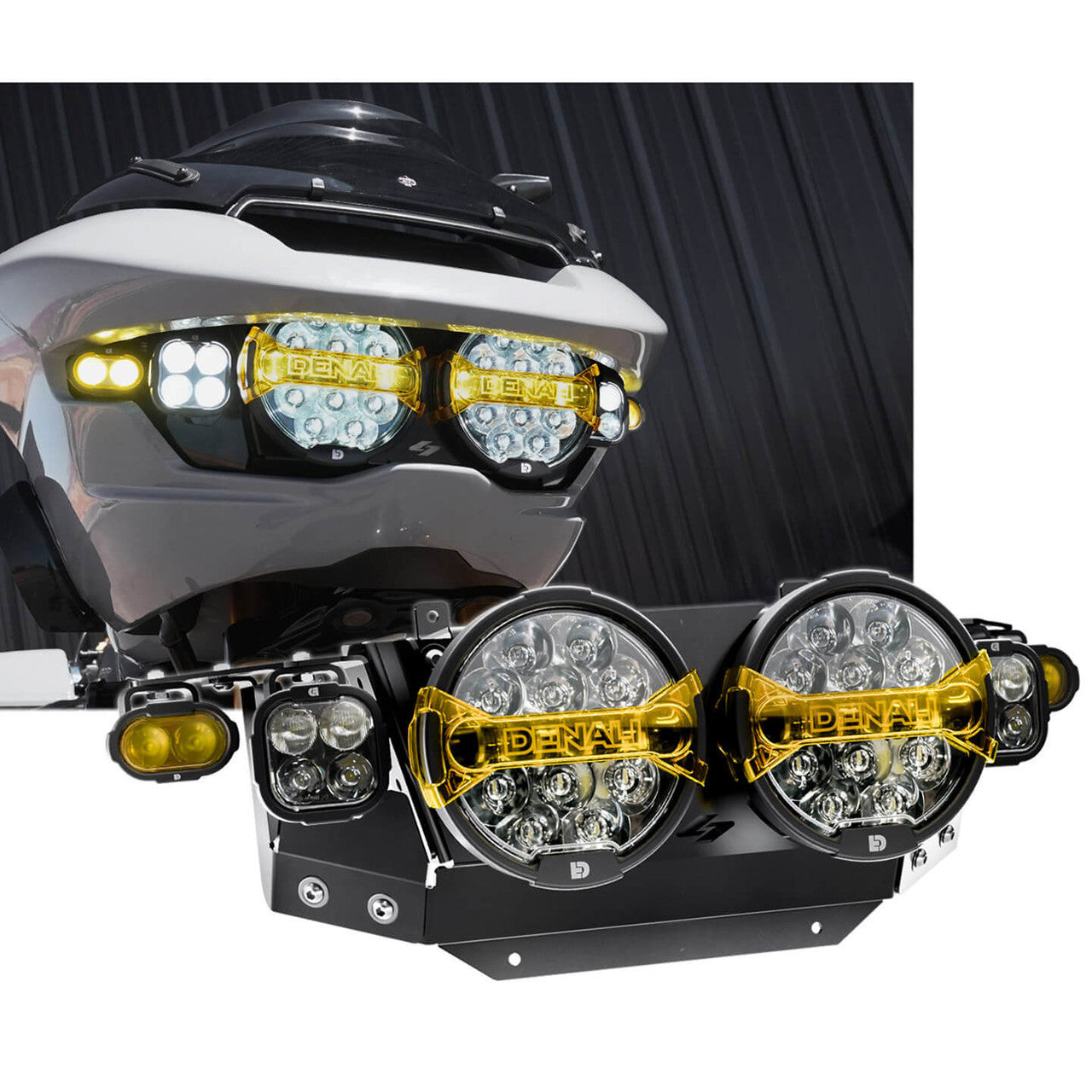

- Modular X-Lens System
- Ultra-slim Profile
- Easy-Adjust Design
- IP68 & 69K Waterproof, Submersible, & High-pressure Spray
- Limited Lifetime Warranty*

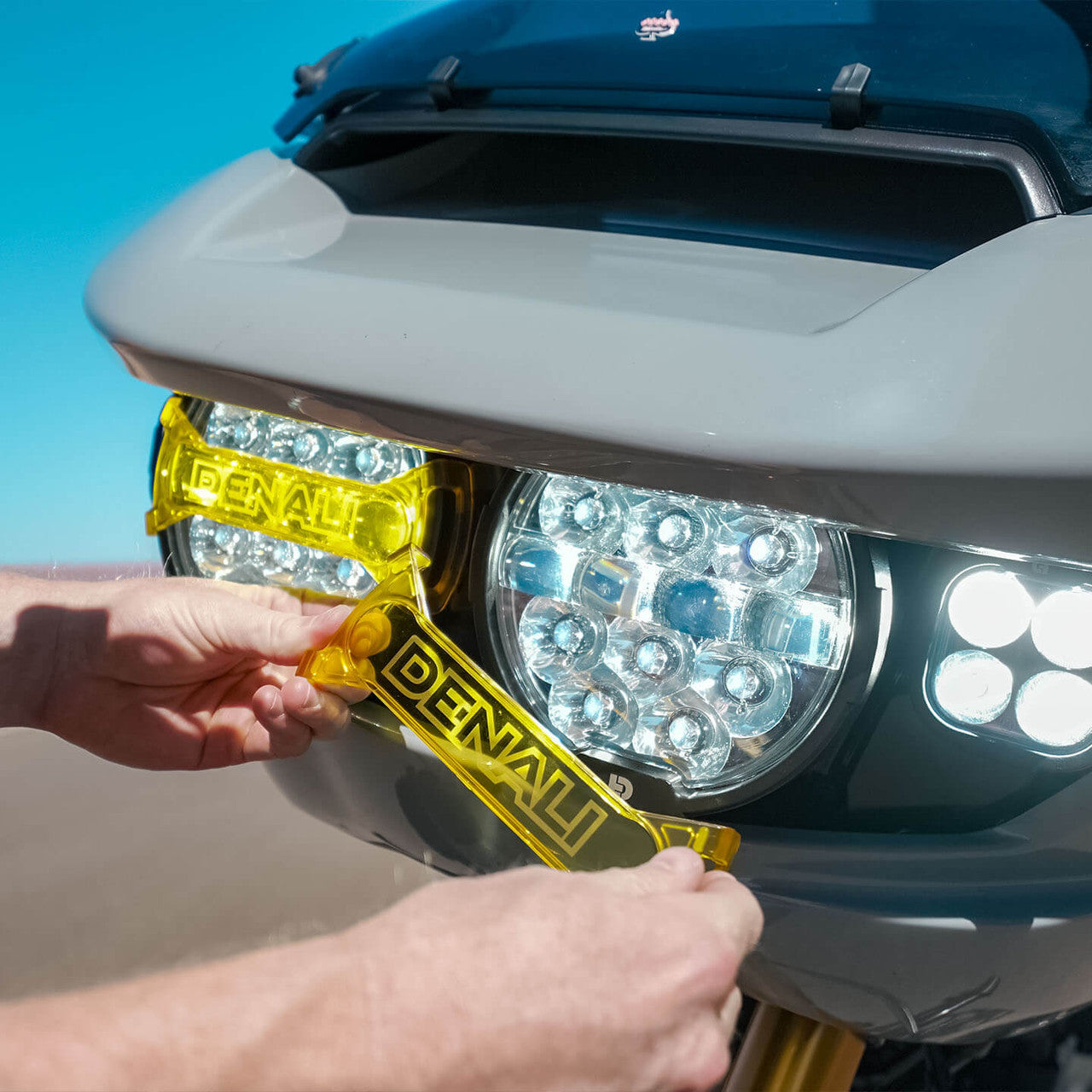

Note: Yellow X-Lenses are sold separately and in sets of 1. Add QTY 2 for Road Glide headlight applications.
Full Specs:
D14 Specifications Dual Beam
- LED’s: (28x) 8 Watt High Intensity LED
- Max Power Draw: 210 Watts / 16 Amps (Destroyer high + low)
- Raw Lumens: 24,800
- Operating Voltage: 9-32 VDC
- IP68 & 69K Waterproof, Submersible, & High-pressure Spray
- DOT/SAE Compliant & ECE R149 Approved Low Beam
- DOT/SAE Compliant High Beam (Blue Wire)
- ECE R149 Approved High Beam (Orange Wire)
Destroyer Mode: ECE High + Low
- Raw Lumens: 25,800
- Power Draw: 210 Watts
- Beam Distance: 1950 ft
- Beam Width: 300 ft
DOT High Beam Mode: DOT High + Low
- Raw Lumens: 15,350
- Power Draw: 110 Watts
- Beam Distance: 1105 ft
- Beam Width: 300 ft
DOT & ECE Low Beam Only
- Raw Lumens: 6724
- Power Draw: 64 Watts
- Beam Distance: 689 ft
- Beam Width: 300 ft
DL4 Specifications Pair
- LED’s: Cree XPL HI (8W each)
- Watts: 64W
- Amp Draw: 5.4A
- Raw Lumens: 6,800
- Beam Distance: 1091’ (333m)
- Beam Width: 209’ (64m)
- Color Temperature: 6000K
- IP Rating: IP68 & 69K Waterproof Submersible & High-Pressure Spray

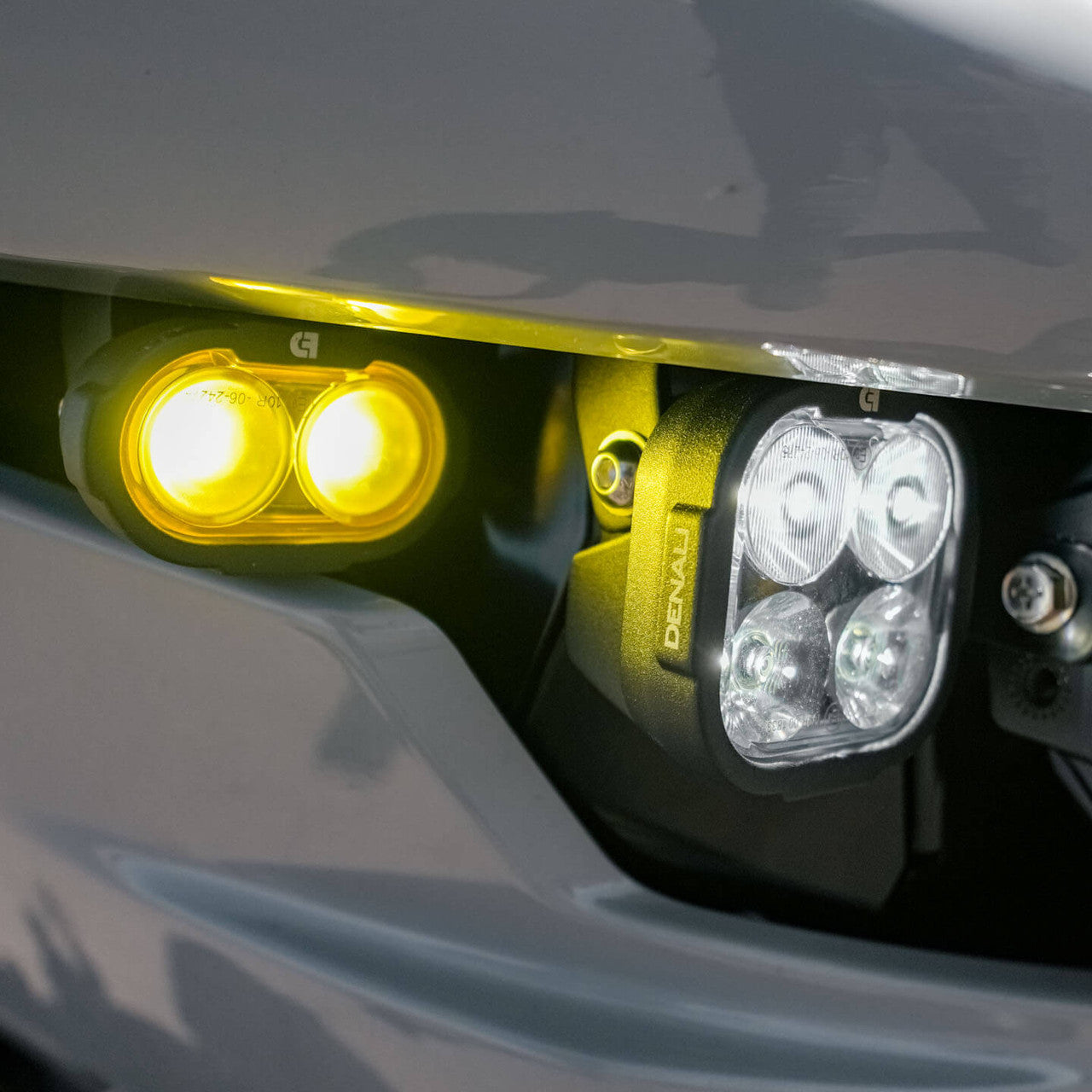

DL2 Specifications Pair
- LED’s: Cree XPL2 HD (8W each)
- Watts: 32W
- Amp Draw: 2.7A
- Raw Lumens: 3,400
- Beam Distance: 173’ (53m)
- Beam Width: 113’ (35m)
- Operating Voltage: 9-32 VDC
- IP68 & 69K Waterproof, Submersible, & High-pressure Spray
*Warranty coverage is provided by Denali and applies only to the D14, DL4, and DL2 lights. Mounting brackets and wire harness are excluded from this warranty.
