motoscope Pro

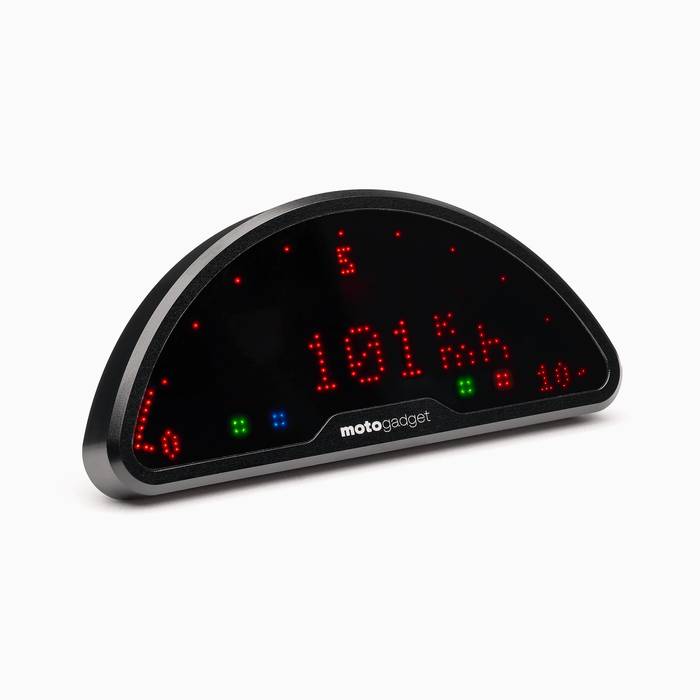

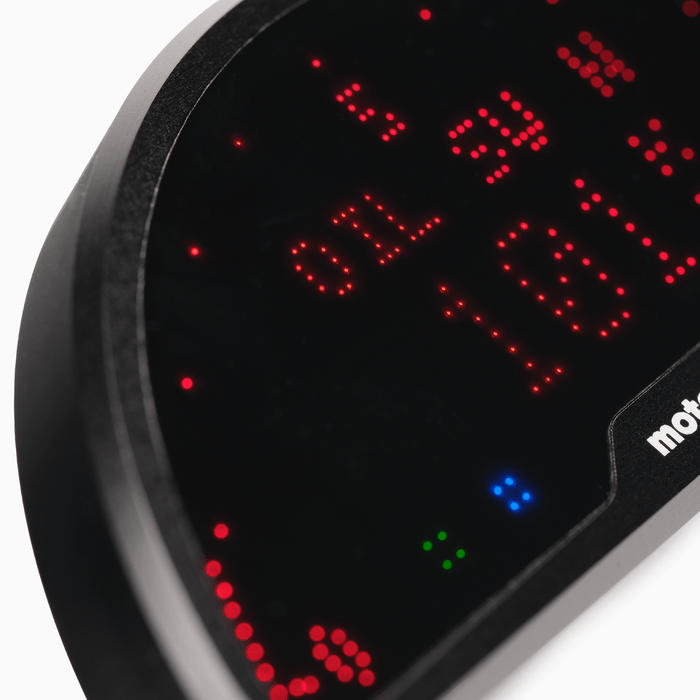

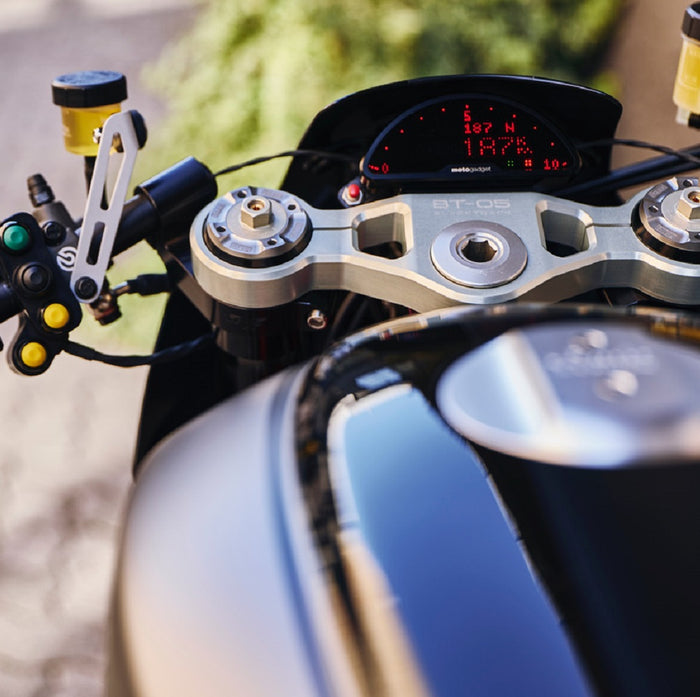

The motoscope pro impresses with its ultra-flat housing design. 734 LEDs, controlled by a 16bit Risc processor, form a self-illuminating display matrix. The high light/dark contrast and automatic brightness control ensure optimum readability in direct sunlight and at night. An analog LED strip with drag pointer function displays the speed in a freely scalable manner. The main and secondary displays can be individually configured. The gear indicator is shown in another, separate display area. Four integrated indicator lights in combination with display text show all possible error messages clearly and quickly.

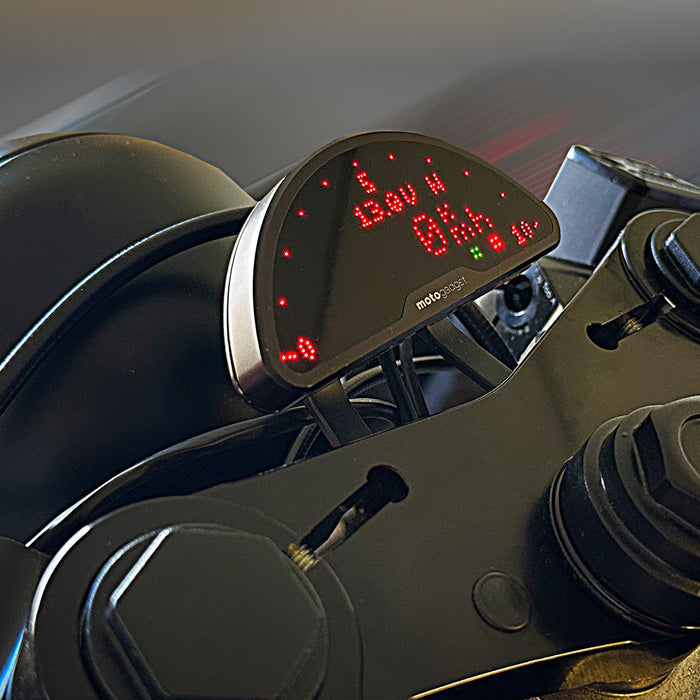

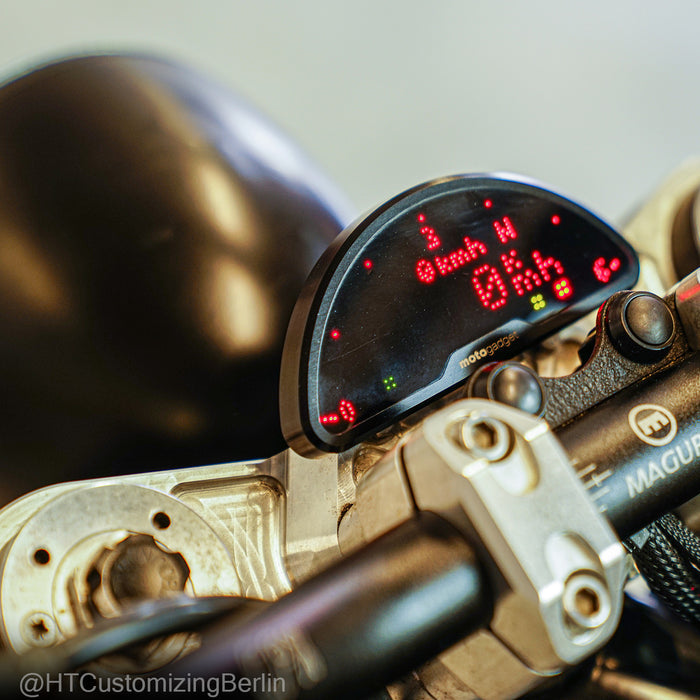

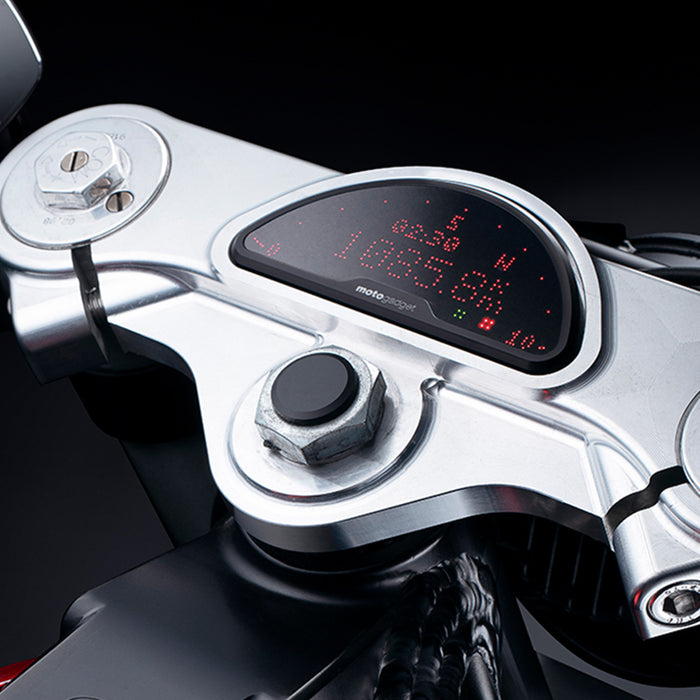

The motocope pro speaks the language of all modern vehicle BUS systems and is easy to install thanks to our Plug & Ride versions. With the supplied vehicle bracket and the included vehicle plug, it can be replaced with the original instrument in just a few minutes. Removal is possible at any time.

The aluminum housing is milled from the solid, anodized and is fastened by two threaded bushes on the back. The instrument has a general operating permit (ABE) and does not need to be registered.

Indicator lights and sensors are connected centrally via the breakout box (can be ordered separately in the accessories category).

Tech Specs :

Universal use on all carburetor models with a breakout box. Vehicle-specific Plug & Ride variants are available.

Indicator lights

• High beam

• Neutral

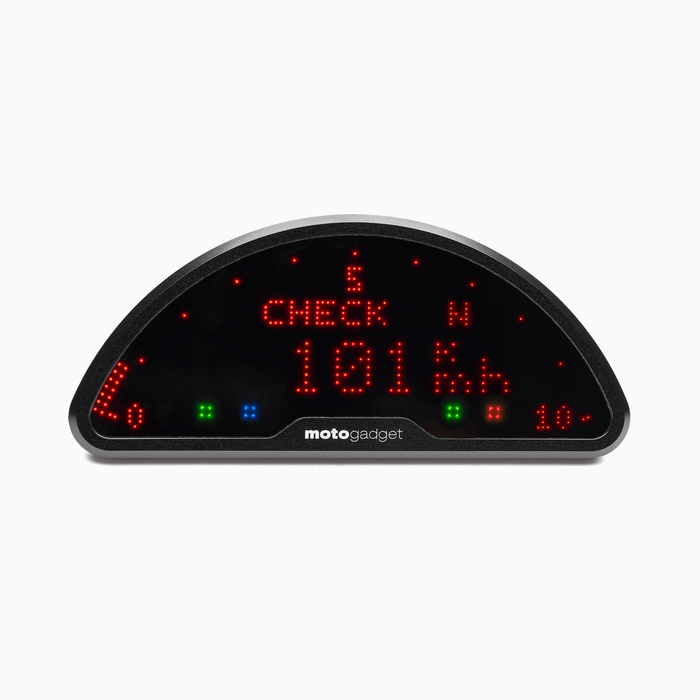

• Universal warning light & text messages

• Blinker left / right

Speed range

• Drag indicator

• adjustable: 0 - 6, 8, 10, 12, 14, 16, 18 krpm

Shift lightning

• adjustable: 0 - 20 krpm

Display

• Gear indicator

• Speed 999 [km/h/mph]

• Trip A 999.9 [km/mi]

• Trip B 999.9 [km/mi]

• Odometer 999999 [km/mi]

• Speed 0-14,000 [rpm]

• Oil temperature 0-200 [°C / °F]

• Water temperature 0-200 [°C/°F]

• Air temperature -20 - 100 [°C/°F]

• Oil pressure 0 - 10.0 [bar/psi]

• Operating hours counter 9999 [h]

• Travel time [h:mm:ss]

• clock

• Time 0-100 km/h - 99.99 s

• Acceleration 0 - 2.00 [G]

• Average speed 999 [km/h/mph]

• Maximum speed 999 [km/h/mph]

• Maximum positive acceleration 0 - 2.00 [G]

• Maximum negative acceleration 0 - -2.00 [G]

• Maximum speed 20000 [rpm]

• On-board voltage 9 - 18 [V]

• Fuel gauge 0 - 100 [%]

Configurable warning messages

• Oil temperature

• Water temperature

• On-board voltage

• Air temperature

• Oil pressure

• Tank capacity

• Service Interwall

• Speed warning (gearshift flash)

Technical data

• Length/width/depth: 109mm / 47mm / 11mm

• Weight with cable: approx. 100g

• Mounting: 2 x M3 threaded bush

• Current consumption during operation: max 200 mA

• Current consumption in idle state: 400µA

• Operating voltage: 9 V - 18 V

• Operating temperature: -20°... +80°C
